Gas & Oil Steam Boilers


Made in Germany!

CERTUSS steam generators are built entirely in Germany from high-quality materials and first-class components from well-known manufacturers. In addition to individual boiler installation, the complete equipment can be delivered as a ready-to-use, and ready-to-install supply unit (CVE), minimizing installation work and the risk of installation mistakes.

The TC boilers with built-in touchscreen graphically guides the operator through all application steps, shows operating status or reports errors, and provides access to additional equipment-related functions, or reminds the user about maintenance appointments and further preventive measures to maintain operational safety. TC means Touch-Control.

Various auxiliary equipment, like the Thermotimat-Control (which allows personnel-free, fully automatic operation of the CERTUSS systems), accommodates different customer requirements. All signals can be integrated into the on-site control technology (BMS), or can also be integrated into a company’s network.

Customer service and spare parts supply are exemplary!

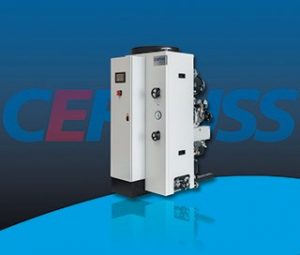

Series JUNIOR TC:


The new generation of a proven concept. Capacity 80 – 400 kg steam/hour, with gas, or oil heating, electronic PLC control with touch screen, fits into smallest spaces.

Mod. JUNIOR TC
HeatingGas or Oil
Steam capacity kg/h80 – 120 150 – 200250 – 400
Heat capacity kW53 – 7999 – 131164 – 262
Nominal load kW kW58 – 87109 – 145182 – 291
hight / width / depth mm1500 / 700 / 12101750 / 740 / 13751850 / 830 / 1510
max. working pressure bar8 / 14 / 22 / 29
Safety valve bar10 / 16 / 25 / 32
Alterations reserved

Series Universal TC:


The new generation of a proven system. Capacity 500-2000 kg steam/h. Electronic PLC control with touch screen. Burner for natural gas, LPG, extra light heating oil, or combination (natural gas/heating oil).

Immediate, continuous power adjustment between 50 and 100% via modulating gas burner, or in 2 steps for oil, and combination burners.

Mod. UNIVERAL TC
HeatingGas, Oil, or Combination
Steam capacity kg/h500 – 600700 – 8501000 – 13001500 – 1800
Heat capacity kW328 – 393459 – 557656 – 853984 – 1180
Nominal load kW364 – 436510 – 619728 – 9471093 – 1311
hight / width / depth mm1980 / 930 / 16002290 / 1160 / 18702535 / 1260 / 21252675 / 1380 / 2310
max. working pressure bar8 / 14 / 22 / 29
Safety valve bar10 / 16 / 25 / 32
Alterations reserved

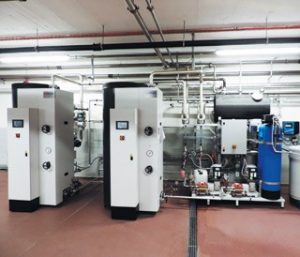

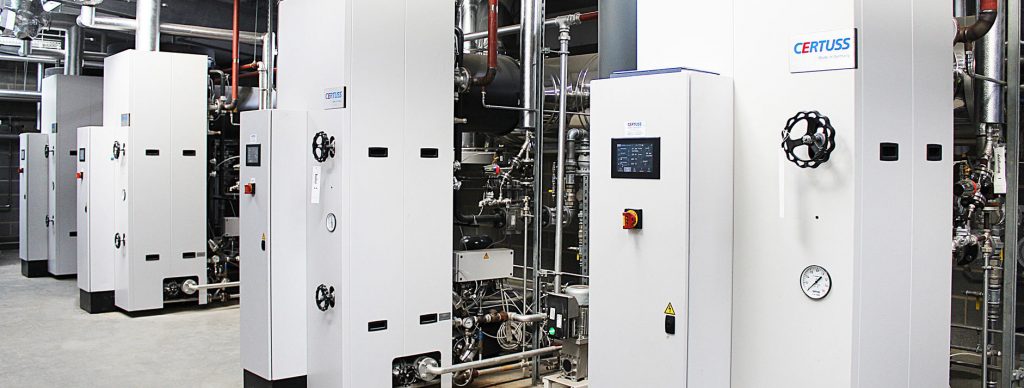

Multiple Systems:


There are various reasons for a multiple system. Do you need more than 2,000 kg steam/h, either permanently or only for the peak load?
In this case several boilers can be combined with each other, which also leads to greater operational safety and reliability in the event of a boiler failure.

In the case of technologies with very different steam requirements, one boiler can cover the basic load, while other boilers switch on only when larger capacity is required.
The other (stand-by)-boilers are switched off during the base load; this flexibility saves considerable energy.

This procedure can work fully automatic with the cascade control. You can also combine different boiler sizes and heating mediums.


Advantages of CERTUSS Technology



Construction:

  • Robust all-steel design with highly efficient air insulation
  • Air intake from top, accumulation heat in the boiler house is sucked off, dirt remains on the floor
  • Noise and vibration absorption, elastic aggregate suspension
  • Vertical, tension-free central suspension of the heating system with bottom point drainage
  • Available with burners for natural gas, liquified petroleum gas, extra light heating oil, or fuel combination.
  • Built according to the latest CE regulations for burners, tested and approved by TÜV Rheinland
  • Small space requirement
  • Optional flue gas recirculation (NOx-reduction)

Economically:

  • Extremely high efficiency (up to 98% with economizer and up to 102% with 2nd heat exchanger) due to a 3-fold sheathing with air insulation-, and combustion-air preheating with minimum radiation losses
  • Short heating up. Full steam output is achieved after a maximum of 5 minutes
  • Immediate energy and thus cost saving performance adjustment to the respective steam demand
  • Low-emission burners specifically developed according to the latest European standards for every model
  • Gas burner with modulating control between 50 and 100% of steam output (oil burners with 2-step-control: 50 and 100%)
  • Low maintenance and variable-speed feed-water pump

User Friendly:

  • Simple operation by self-explanatory touchscreen menu navigation
  • Graphically supported instructions for startup and shutdown
  • “Thermotimat” option for fully automatic operation, without manual intervention
  • Remote control and monitoring via Ethernet, or cell phone (optional)

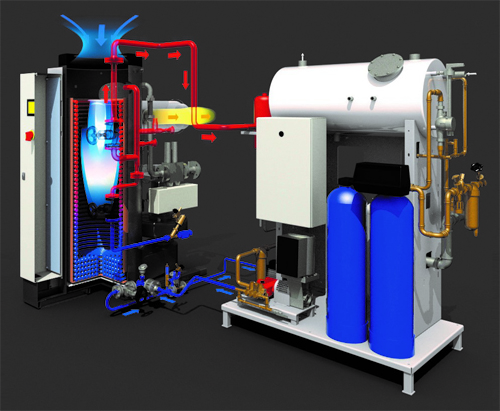

  • Optional: CVE supply-unit with ready to use installation of equipment like boiler feed pump, feedwater tank, steam dryer, water treatment, and waste water mixer

Operation and Installation:

  • Safe installation without foundation and with small space requirement
  • Installation in workrooms possible, no boiler house necessary
  • Equipment for operation without manual intervention (optional)
  • Multi-level user administration

Safety and Quality

  • Function and malfunction indicators can be connected to on-site CCS (central control system) / building management system (BMS)
  • Remote programming, readout or control via Ethernet, Canbus, Profibus, or GSM / UMTS modem (optional)
  • Function and error messages, as well as service instructions by plain text display in all languages
  • 24/7 Customer service, 365 days a year
    Supply of spare parts guaranteed for 25 years
  • Exemplary Service and Spare Parts Supply

More advantages can be found  here!
