CERTUSS is your partner for the entire boiler-house!
We supply all water treatment systems, tanks, fittings, etc., required for boiler operation.
- Feed water tanks, various sizes, all made of stainless steel
- Water softening systems, single and double softeners
- Filter systems for various applications
- Dosing systems for corrosion protection chemicals
- Mixing tanks and coolers, steam dryers, condensate drain units, pressure reducers, etc.
All accessories (water softener, salt container, feed water tank, dosing unit, mixing cooler, pump, fittings, etc.) are mounted on a base frame (pallet), electrically connected and piped, completely prepared for installation to the supply connections.
The supply-unit saves on-site installation costs and prevents installation mistakes!
The container system saves the construction of a boiler house, or a boiler room.
All accessories and the boiler are mounted into an insulated 20-foot container and are wired and piped completely ready for use.
Delivery includes floor panel, ventilation, lighting, electrical antifreeze heaters, electrical distribution box with emergency stop switch, plus insulation of the steam and condensate lines.
Only the connections for supplies and chimney must be installed on sight, outside of the container.
Water Treatment (preparation)
We supply fully automatic systems for soft water supply based on the ion-exchange principle. The devices are individually calculated according to your need, based on technology, water quality, and boiler output.
The regeneration of the single or double systems is controlled according to the actual water consumption, and therefore guarantees maximum operational safety with minimal salt demand.
Additional components for complex water qualities can be supplied as well. (various filters, iron removal, osmosis, etc.)
A water softener is compulsory for every CERTUSS steam generator. Our softeners eliminate water hardness reliably and are easy to operate and maintain. The soft water guarantees long lifetime of the heat system.
The dosing unit adds small amounts of chemicals into the softened feed water, to avoid corrosion and eliminate free oxygen. The right chemical is chosen according to raw water analysis and technology.
CERTUSS steam boilers protect our environment while staying economical.
Discover energy saving potentials from standard features such as double air cooling, and minimal start-up losses, or by optional devices for flue gas-, or condensate heat recoveries, such as CERTECON, PARCOVAP or Desalination Heat Exchanger (which also saves water).
All of our energy saving devices work fully automatic, without any need of electricity, compressed air or other supplies!
Flue gas heat exchanger for complete range of our boiler models!
- Use of flue gas heat to raise the temperature of the boiler feed water
- Reduced burner output with full steam generation
- Fuel savings of up to 5%
- Reduced emissions
- Internal energy recovery without external heat consumers
- Short payback period
- Condensate heat recovery for up to 13% of energy savings
- Recovery from post-evaporation heat of the condensate
- Direct supply of the recovered heat to the steam generator
- Simple function monitoring of all steam traps
- No noise caused by condensation hammers
- Low space requirement, and assembly in any position
Desalination Heat Exchanger
- -Energy recovery from the desalination condensate for heating the feed-water
- Reduces amount of cooling water for the mixing cooler
The feed-water tanks made of stainless-steel are equipped with all necessary connections and a service opening; different volumes fit with every boiler size.
The fresh water is preheated before it is pumped into the boiler, and the condensate is returned to the tank.
The corresponding components for heating and level control are included but can also be ordered separately.
MIXING COOLER INOX
Waste-water and cool-down tank made from stainless steel, to cool the hot waste water before it reaches the drain. This is needed if there is no heat resistant drain system, or local rules do not allow drainage of high temperature water.

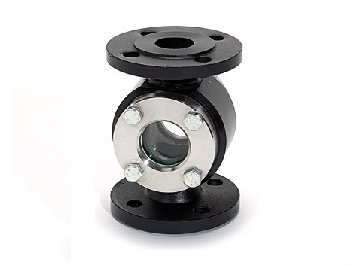

We can supply all fittings for the steam pipe, regulation, supervision and control.
- steam dryers
- filters and dirt-traps
- check valves

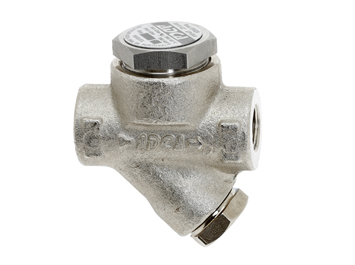

- steam traps

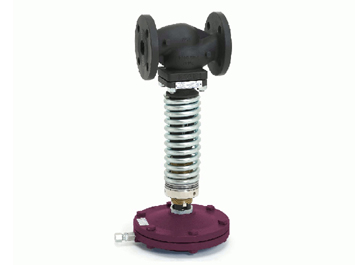

- pressure reducing valves
- pressure, level and temperature controllers
- shut-off, safety and solenoid valves
- feed water or condensate pumps
